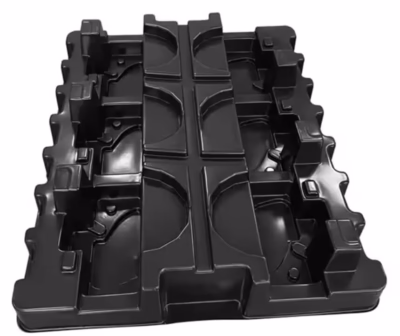

Custom Vacuum Forming Logistics Trays
At Hengtuopu, we focus on crafting logistics trays through vacuum forming, a process that shapes heated plastic sheets over molds to create practical solutions for transporting and storing goods. These trays are essential across industries, and our goal is to meet specific client needs with precision. This blog dives into the details of logistics trays—how they’re classified, what materials work best, and why customization matters—all grounded in our hands-on experience.
Types of Logistics Trays and Their Uses
Logistics trays vary depending on their purpose. Here’s how we break them down at Hengtuopu:
- Shipping Trays: Built for moving products between locations—think automotive parts or retail goods. They’re lightweight, stackable, and tough enough for transit.
- Storage Trays: Used in warehouses to keep items organized. We often add compartments for small components like screws or electronics.
- Handling Trays: Common in factories, these move parts along production lines. Durability is key since they’re used daily.
- Specialty Trays: Designed for unique jobs, like carrying medical tools or food items, where cleanliness or exact fit matters.
We’ve made trays for everything from car dashboards to grocery displays. The flexibility of vacuum forming lets us adapt to different industries without overcomplicating the process.
Picking the Right Material
The material we choose depends on where and how the tray will be used. Here’s what we recommend, based on real-world needs:
- HDPE (High-Density Polyethylene): Strong and long-lasting, it stands up to rough handling and wet or chemical-heavy environments. We use it for outdoor shipping trays because it doesn’t crack easily and can be recycled.
- ABS (Acrylonitrile Butadiene Styrene): A solid middle-ground option—tough yet workable. It’s great for indoor trays, like those holding electronics, though it’s not the best for sunny or hot conditions.
- PVC (Polyvinyl Chloride): Good for trays around chemicals since it resists corrosion well. It’s affordable too, but recycling it is trickier, so we weigh that with clients.
- PETG (Polyethylene Terephthalate Glycol): Lightweight and clear, it’s our pick for trays needing visibility—like in medical or food settings. Plus, it’s recyclable.
Here’s a quick look at how they compare:
| Material | Strength | Wear Resistance |
Corrosion Resistance |
Eco-Friendliness |
Best For |
|---|---|---|---|---|---|
| HDPE | High | Very Good | Excellent | Recyclable | Heavy loads, outdoors |
| ABS | Decent | Good | Fair | Limited recycling | Indoor use, electronics |
| PVC | Decent | Good | Very Good | Less sustainable | Chemical exposure |
| PETG | Fair | Good | Good | Recyclable | Food, medical |
We talk through these options with clients to match the tray’s job—whether it’s surviving a bumpy truck ride or keeping parts safe in a damp warehouse.
Customization That Fits Your Needs
One thing we pride ourselves on at Hengtuopu is making trays that work exactly as needed. We can tweak:
- Size: Small trays for tiny parts (say, 20 x 30 cm) or big ones for bulky items (up to 200 x 100 cm).
- Shape: Flat and simple or detailed with slots and curves to hold specific objects securely.
- Weight Capacity: From light-duty (5 kg) to heavy-duty (50 kg or more), depending on thickness and design.
We’ve built trays to cradle fragile circuit boards and others to haul engine blocks. It’s all about solving the client’s problem with a tray that fits their setup.
Keeping Production Moving
Time matters in logistics. Our vacuum forming setup at Hengtuopu is designed to deliver fast. A prototype might take 7-10 days, while a full order could be ready in 15-20 days, depending on how complex it is. We make molds in-house and keep the process straightforward to avoid delays. For rush jobs, we’ve got ways to speed things up—because we know a late tray can hold up a whole operation.
Managing Costs
Cost is still a big deal for customers. Vacuum forming trays save money because the molds cost less than injection molding—usually about 1/10 of the price. You also save more because:
-
-
- Production: Using vacuum formable plastics optimizes material use, minimizing waste.
- Using Materials Wisely: Less waste means lower bills.
- Keeping It Light: Thinner, strong trays cut shipping fees.
- Building to Last: A tray that doesn’t break fast saves money over time.
-
We aim to give clients something affordable that still gets the job done well.
Quality You Can Count On
We stick to ISO 9001 rules at Hengtuopu, so every tray meets a solid standard. We test them—drop them, load them up, expose them to weather—to make sure they hold up. Clients in fields like healthcare or automotive need that reliability, and we deliver it.
Thinking About the Planet
More clients ask about sustainability these days. We lean toward materials like HDPE and PETG because they can be recycled when the tray’s done. The vacuum forming process itself doesn’t waste much energy or plastic either. It’s not perfect, but it’s a step toward greener logistics that we’re committed to.
Working With What You’ve Got
A tray’s no good if it doesn’t fit your system. We design ours to match forklifts, racks, or conveyor belts—whatever you’re using. Stackable? Sized for your shelves? We’ve got it covered. It’s about making sure the tray slides into your workflow without a hitch.
At Hengtuopu, we see vacuum forming as more than a process—it’s how we solve logistics challenges. Whether it’s a sturdy shipping tray or a custom fit for a production line, we bring practical know-how to every project. Our focus is on materials that perform, designs that work, and a process that delivers on time. If you’re looking for trays that fit your operation, let’s talk about what we can build together.
FAQ
What materials are available?
Options include ABS, PS, PE, PC, PMMA, chosen for durability or specific needs.
Can trays be customized?
Yes, we design trays to fit your products with custom shapes and compartments.
Which industries use them?
Automotive, electronics, medical, consumer goods, and manufacturing.
How durable are vacuum-formed logistics trays?
Our trays are built to be robust and long-lasting, capable of withstanding repeated use, heavy loads, and various environmental conditions, thanks to the high-quality materials and precise manufacturing process.
Are eco-friendly or ESD-safe options available?
Yes, we offer sustainable materials and ESD protection for electronics.
How fast is production?
Rapid prototyping and production, much faster than injection molding.
What is the cost of custom vacuum-formed logistics trays?
Costs vary based on size, material, and customization level. However, vacuum forming is highly cost-effective, with development costs as low as 1/10th of injection molding, making it an affordable solution for custom trays.
Can you add branding or features?
Yes, logos, textures, and functional features like stackability are available.
